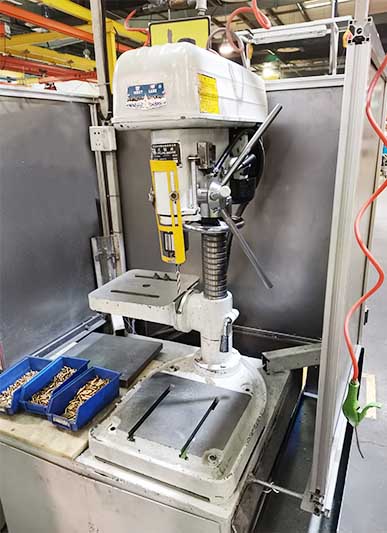

·During the operation of the drilling machine, hot debris and sparks are generated in the operation area, and the roating parts of the machine will endanger the safety of personnel;

·Improve the safety performance during the operation of the drilling machine, prevent the operator's hands from directly contacting the high-speed rotating drill bit, prevent accidental mechanical injury, and protect the operator's personal safety.

·Safety control system Comply with (GB/T 16855.1-1997) Class 1 or Class 3 stop requirements; comply with the relevant regulations and requirements of GB5226.1-2002 10.7, and GB 16754;

• Product patent number: ZL 2014 2 0692706.4

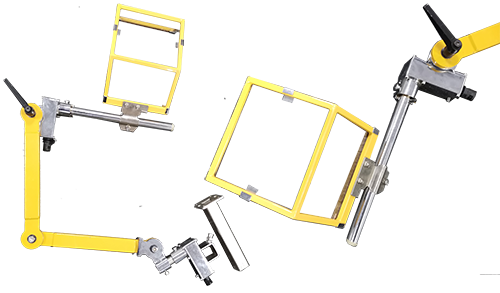

• Safety design considerations

   The design of the drilling machine protective cover should properly consider the operation of the machine for the foreseeable full life cycle and the predictable machine environment

   Factors, poor consideration can lead to dangerous conditions that hinder the operation of the machine, which in turn leads to the protective cover provided

   Was artificially abandoned, thereby exposing the operator to greater risks. Foreseeable aspects of existing operating shields

   All are properly considered in the design stage to ensure that the design and manufacture of the protective cover itself does not create new dangers.

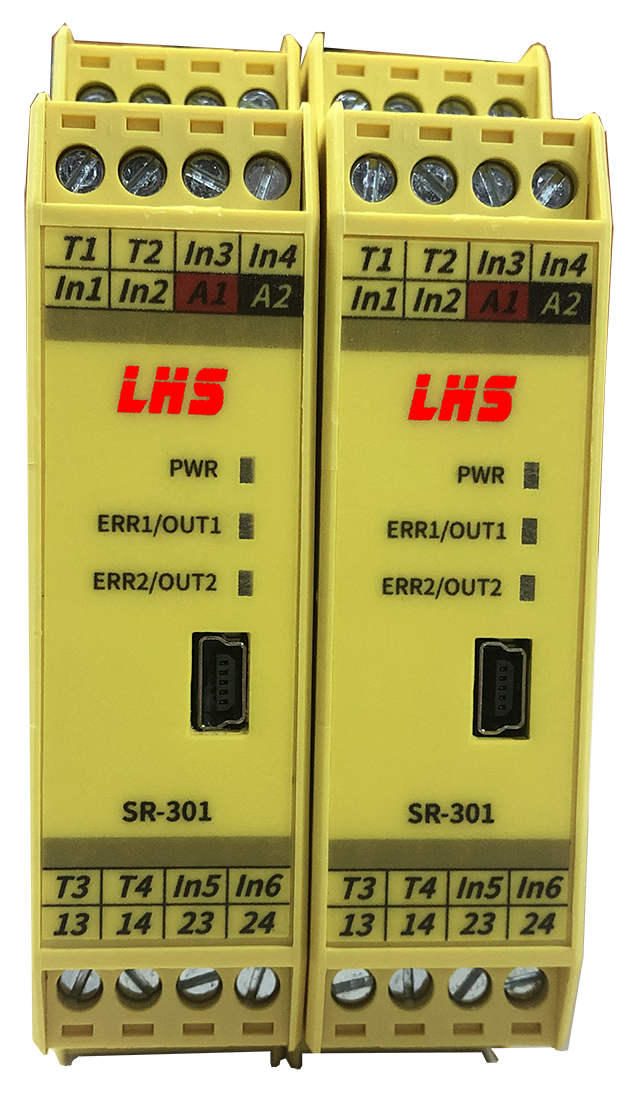

SR301 safety relay

• It is a safety relay that can customize the input of three groups of safety products, support

   Multiple safety product component inputs

• Support up to 3 groups of safety element input

ISO 13849-1 Performance Index PLe

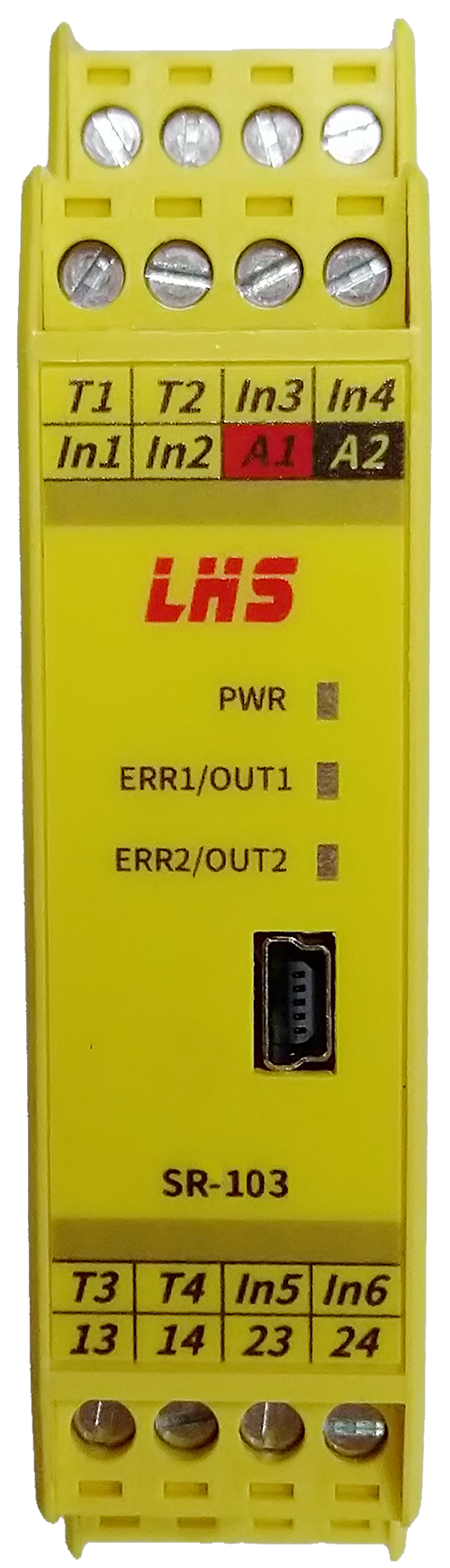

SR 103 safety controller

• Monitoring function of dual signals such as emergency stop switch and safety switch

 Performance index e corresponding to EN ISO 13849-1 and safety category 4

• Built-in self-diagnosis function to detect faults

• Can choose automatic reset or manual reset

• The terminal block is a finger safety protection structure

• Obtained TüV Rheinland certification
